VISOR Balustrade - Aluminium 63x20mm Wall/Post Bracket

PLEASE DOWNLOAD THIS HELPFUL FORM TO WORKOUT YOUR VISOR NEEDS.
Please open this form via Microsoft Excel

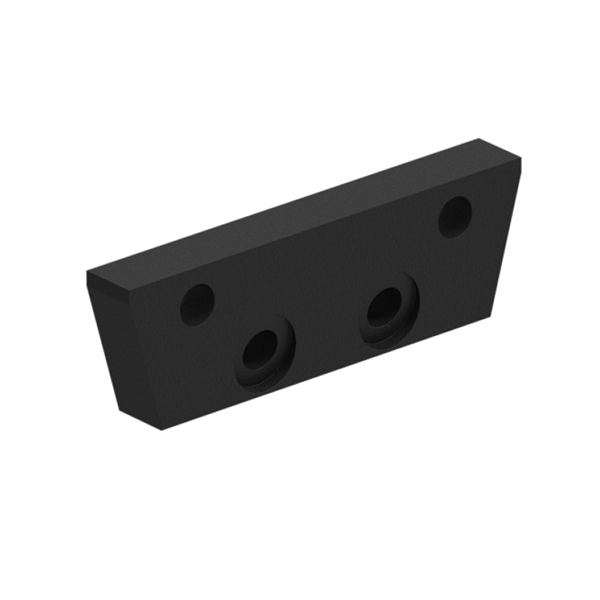

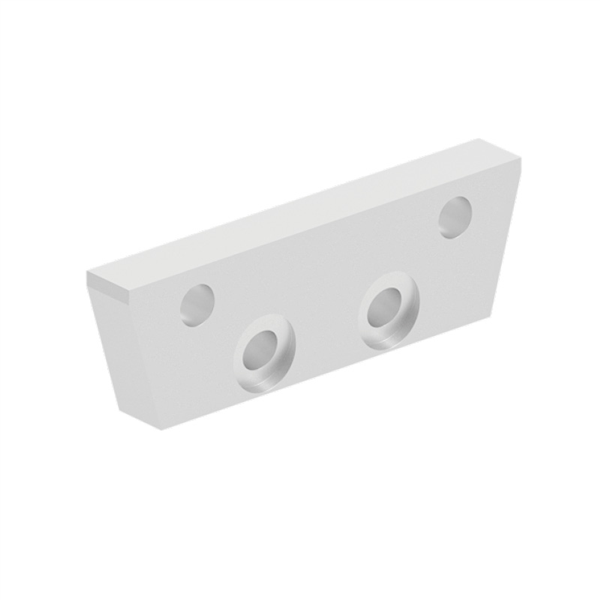

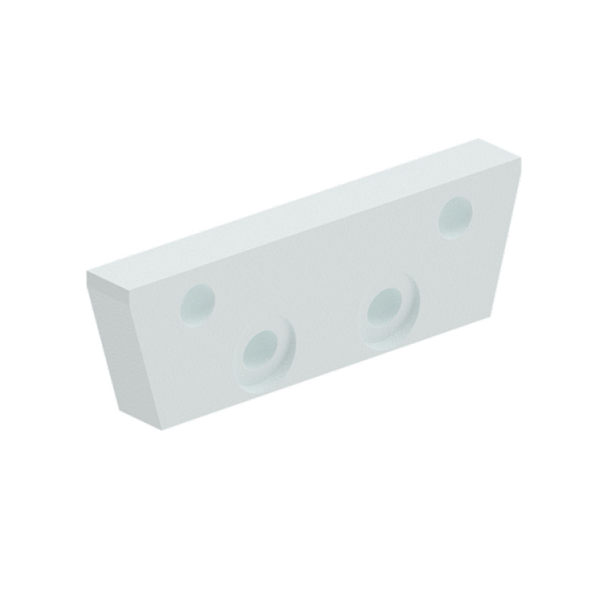

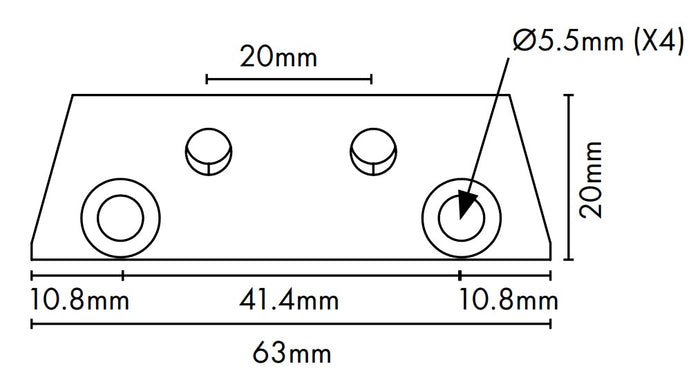

• 63x20 wall plate - 8mm thick
• Extruded aluminium with 4 x 5.5mm diam countersunk holes

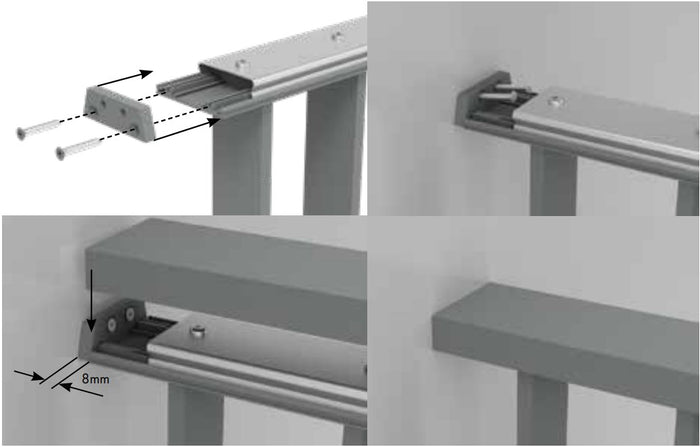

• Mechanically fixes to undercapping plate and then fix off to wall/post
• Once snapped on, 70x23mm handrail covers bracket giving a seamless terminating fixing
• Screws for fixing to undercapping rail sold separately
• Screws for fixing to wall/post not supplied - determine having regard to substrate screwing into
